Rock Triaxial Test
GCTS Triaxial Testing Systems were designed to quickly and easily perform triaxial tests on rock specimens. These systems can be configured with a wide range of load capacities, pressure capacities, temperature ratings, specimen sizes and frame stiffnesses to provide a unique system for each customer. Each system is equipped with our state-of-the-art servo-controller and software to automatically perform a complete triaxial test from start to finish, including multi-stage procedures.
The RTR Series of systems feature a box load frame with an integrated cell lift and locking mechanism. A single button raises and lowers the cell and locks it in place – no bolts are needed! This drastically reduces the preparation time between tests, easily doubling the number of tests that can be performed in a single day compared to standard testing systems. Each system can be upgraded to perform a variety of tests in addition to standard triaxial testing, including indirect tension, pulse-decay permeability, and even direct shear!
GCTS also offers the RTX Series of systems, which include a four-column load frame and stand-alone triaxial cell in addition to our servo-controller and automatic testing software.
Video Demonstration
Relevant Standards

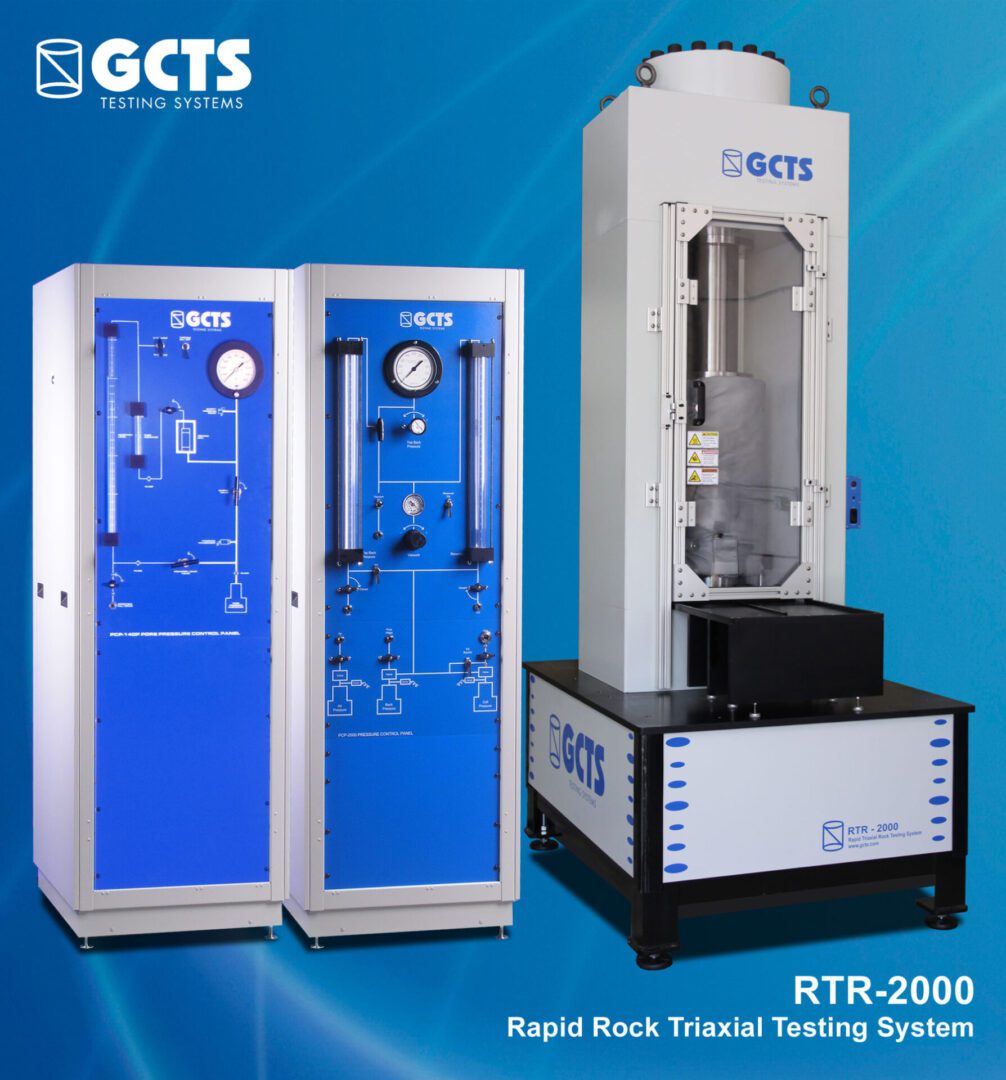

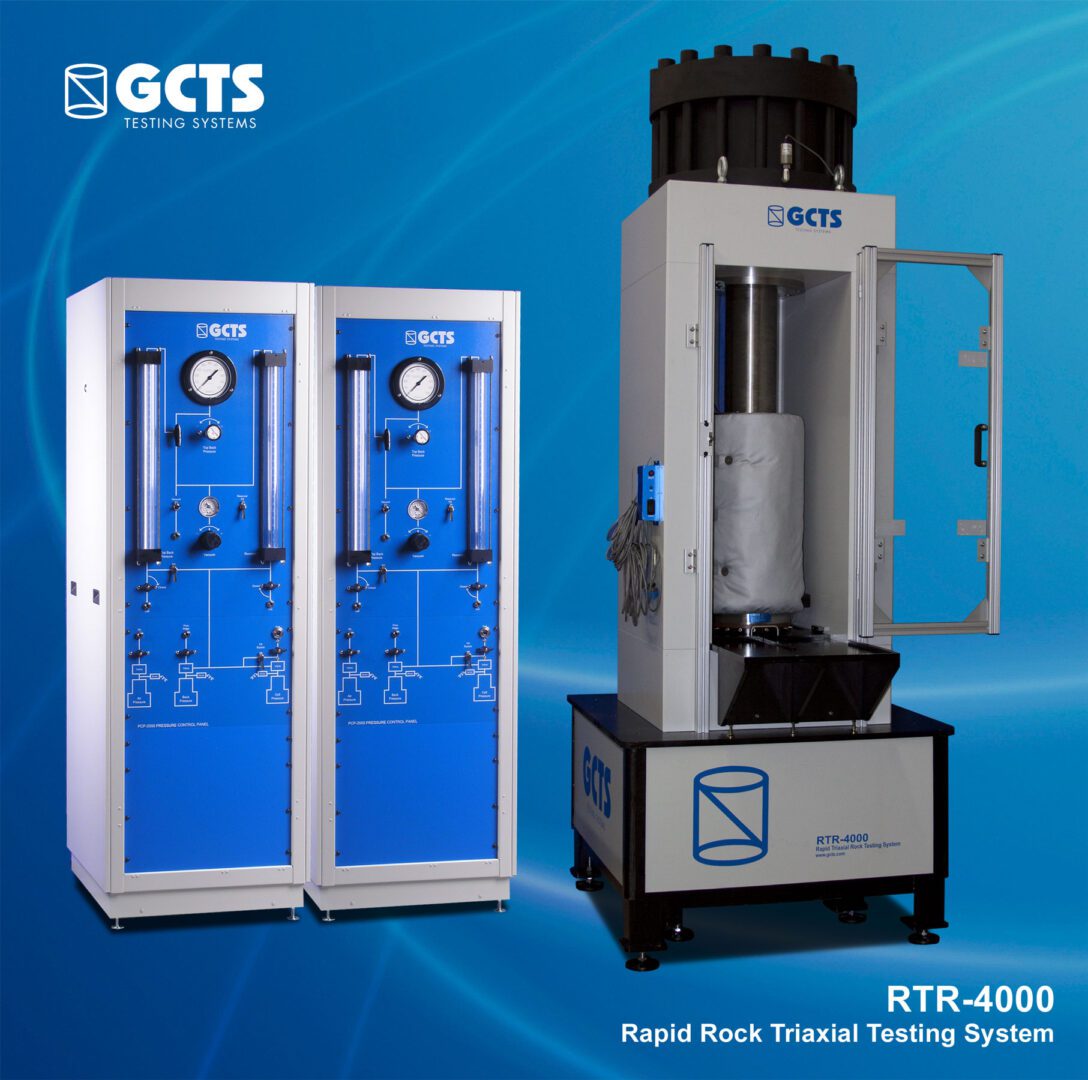

RTR Series
HIGHLIGHTS
- Box load frame with a stiffness of 1.75 MN/mm, 5 MN/mm, or 10 MN/mm
- Closed-loop servo control of the axial load actuator with load capacities from 1,000 kN (225 kip) to 4,500 kN (1,010 kip)
- Integrated triaxial cell with pressure capacity of 70, 140, or 210 MPa
- Triaxial cell is disassembled, assembled, and locked for testing with a single button, significantly decreasing the time required for
specimen preparation - Systems available for specimens with a diameter of up to 65 mm or up to 100 mm
- On-specimen instrumentation for axial and radial strain measurements are included
- Numerous feed-through lines for measurement devices and sensors inside the cell
- Systems include confining pressure and pore pressure control panels
- High and low temperature testing upgrades available
- Advanced software to automatically perform full triaxial tests
- Systems can be upgraded with various accessories to perform a wide variety of tests, including:
- Indirect Tension
- Ultrasonic Velocity
- Rock Fracture Toughness
- True Triaxial
- Acoustic Emissions
- Differential Strain Analysis
- Direct Shear
- Hydraulic Fracturing
- Electrical Resistivity
- Direct Tension
- Permeability

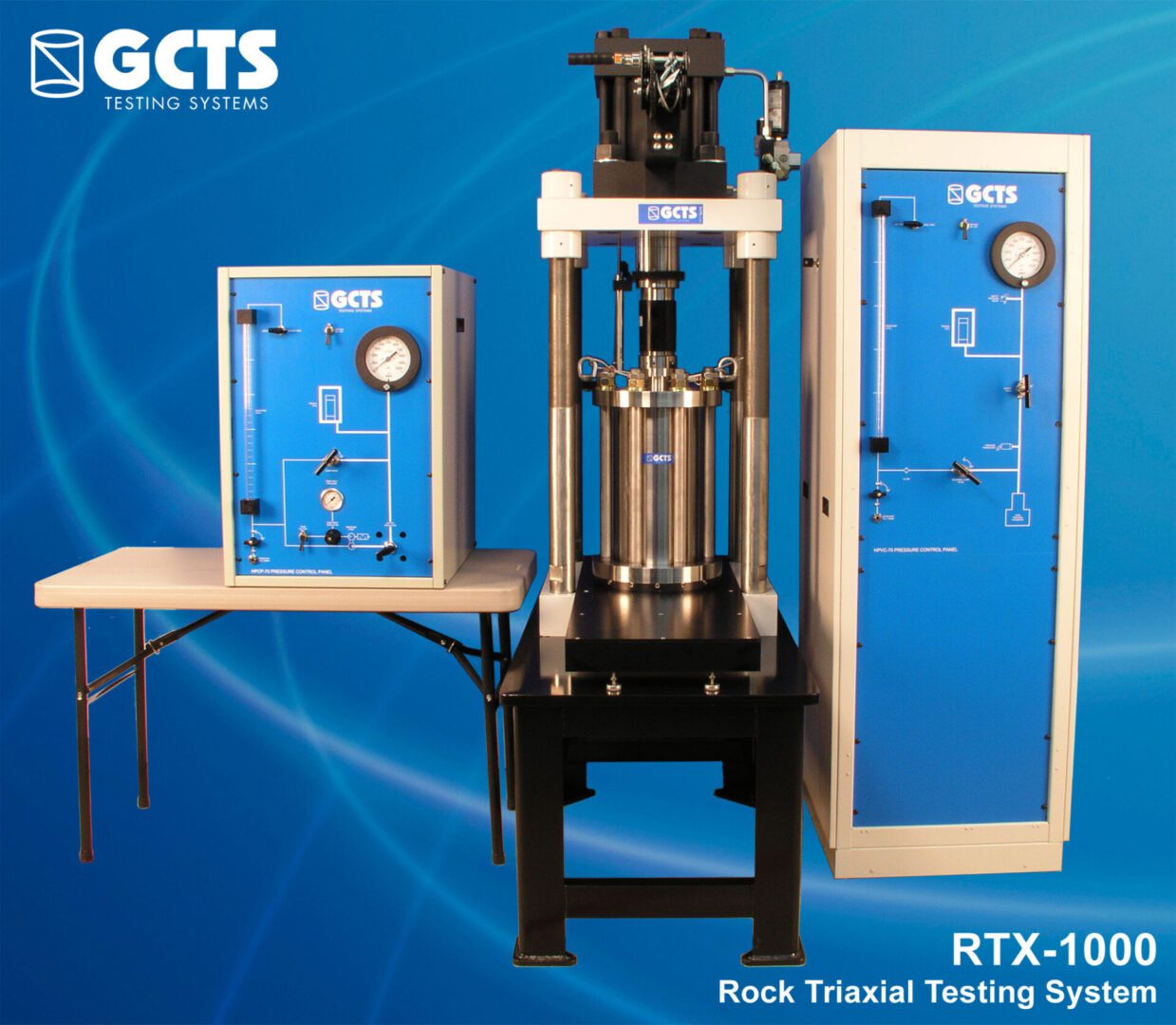

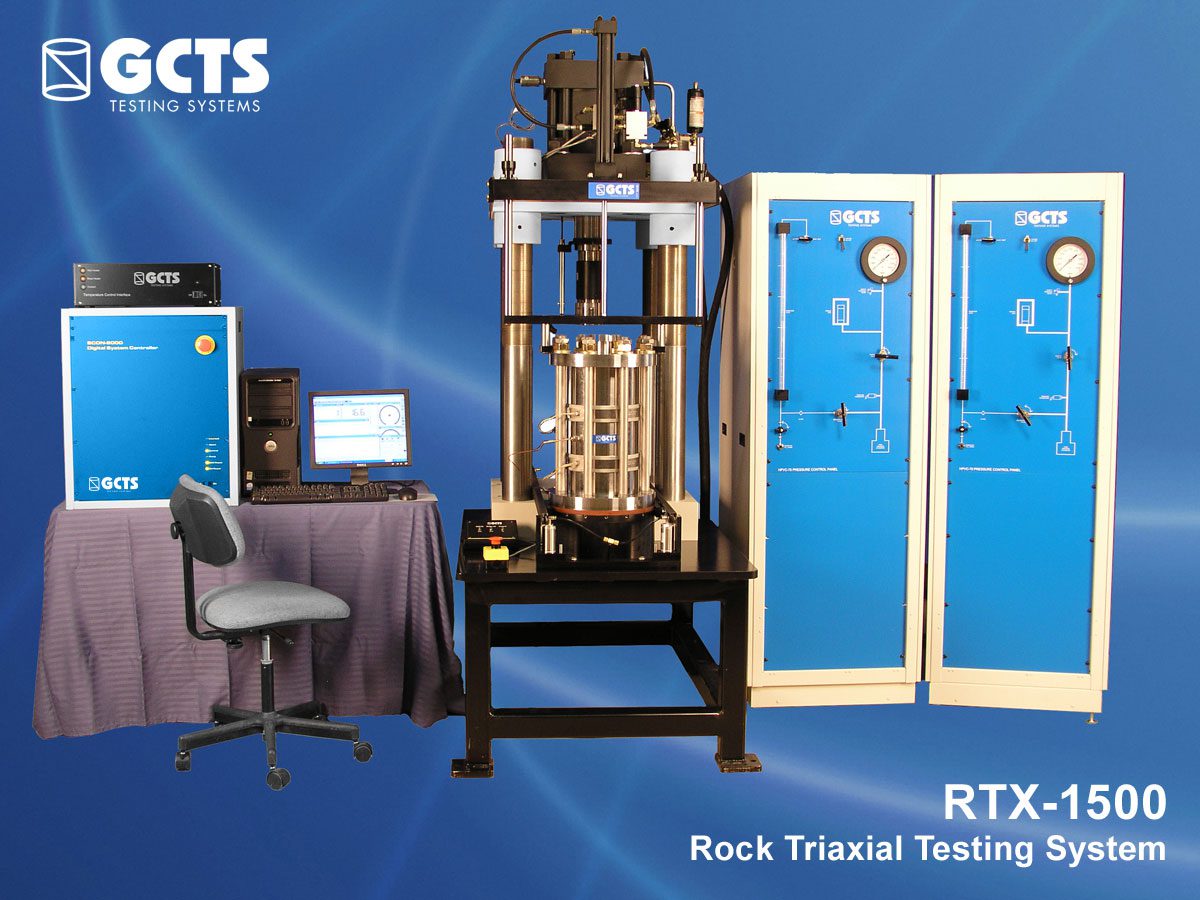

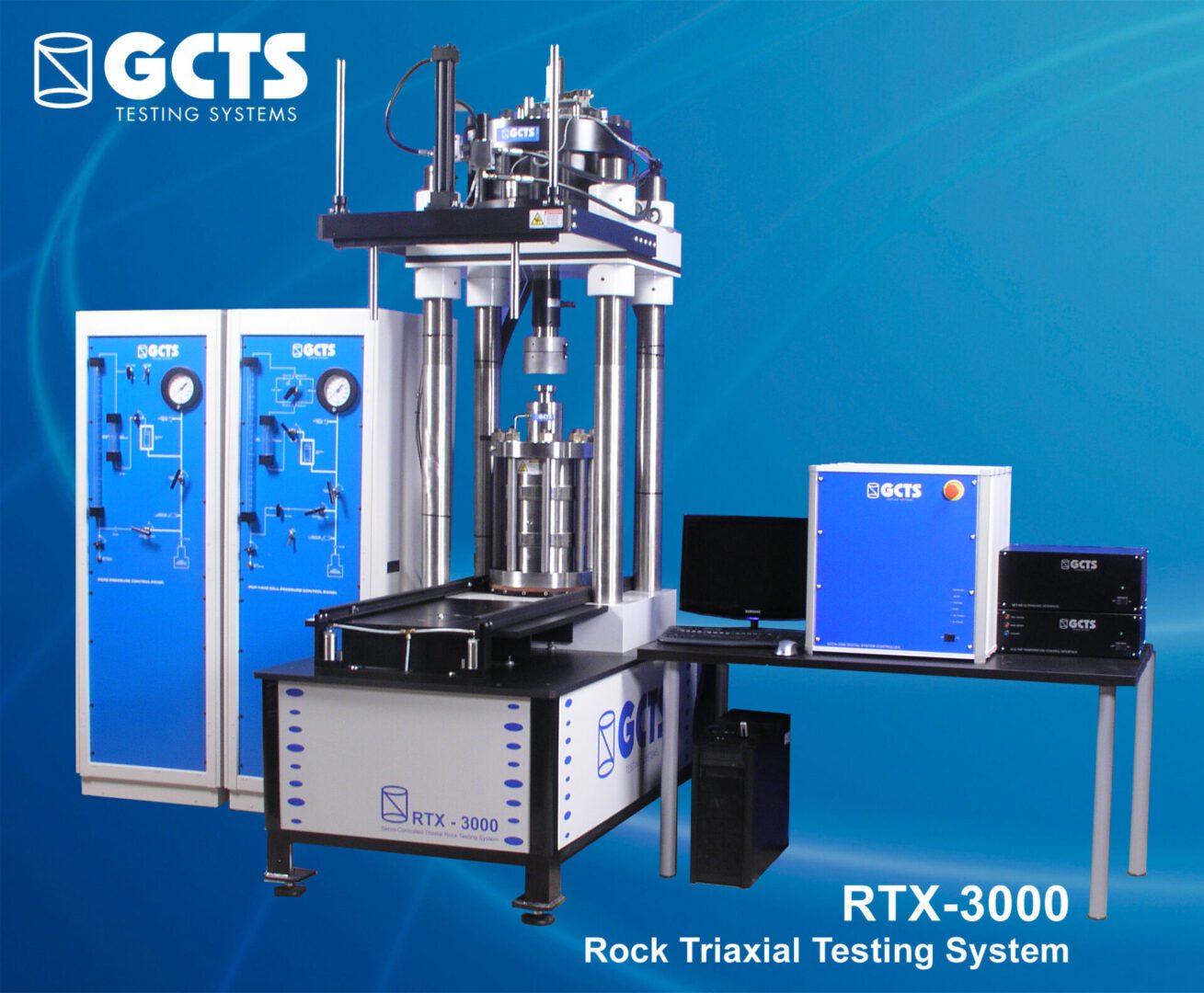

RTX Series
HIGHLIGHTS
- Four-column load frame with a stiffness of 0.75 MN/mm, 1.75 MN/mm, or 5 MN/mm
- Closed-loop servo control of the axial load actuator with load capacities from 1,000 kN (225 kip) to 4,500 kN (1,010 kip)
- Stand-alone triaxial cell with pressure capacity of 70, 140, or 210 MPa
- Hydraulic lift for easy disassembly of triaxial cell
- Systems available for specimens with a diameter of up to 65 mm or up to 100 mm
- On-specimen instrumentation for axial and radial strain measurements are included
- Numerous feed-through lines for measurement devices and sensors inside the cell
- Systems include confining pressure and pore pressure control panels
- High and low temperature testing upgrades available
- Advanced software to automatically perform full triaxial tests
- Systems can be upgraded with various accessories to perform a wide variety of tests, including:
- Indirect Tension
- Ultrasonic Velocity
- Rock Fracture Toughness
- True Triaxial
- Acoustic Emissions
- Differential Strain Analysis
- Hydraulic Fracturing
- Electrical Resistivity
- Direct Tension
- Permeability
