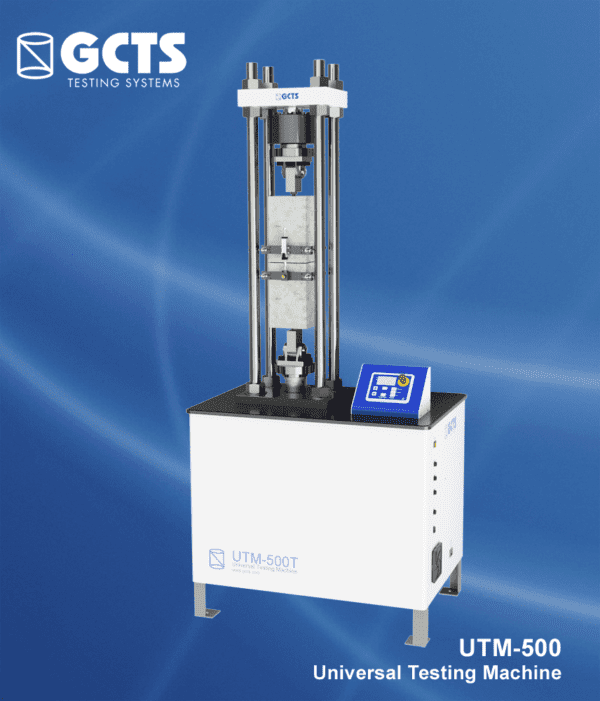

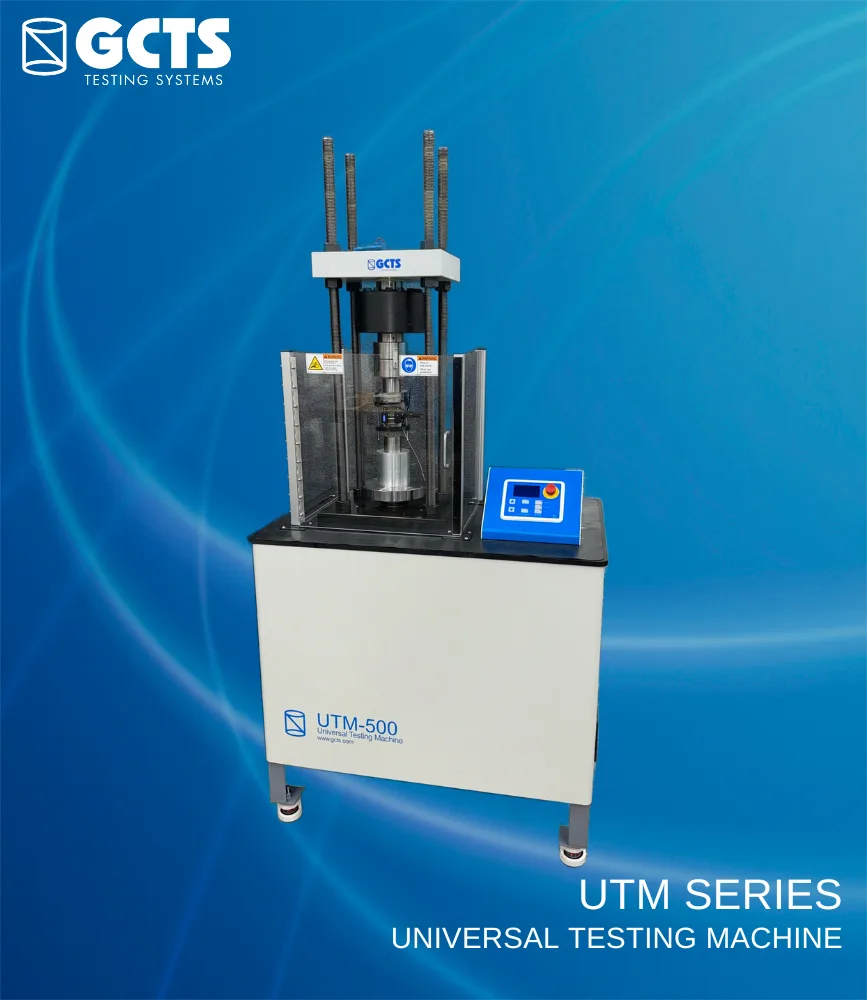

Universal Testing Machine

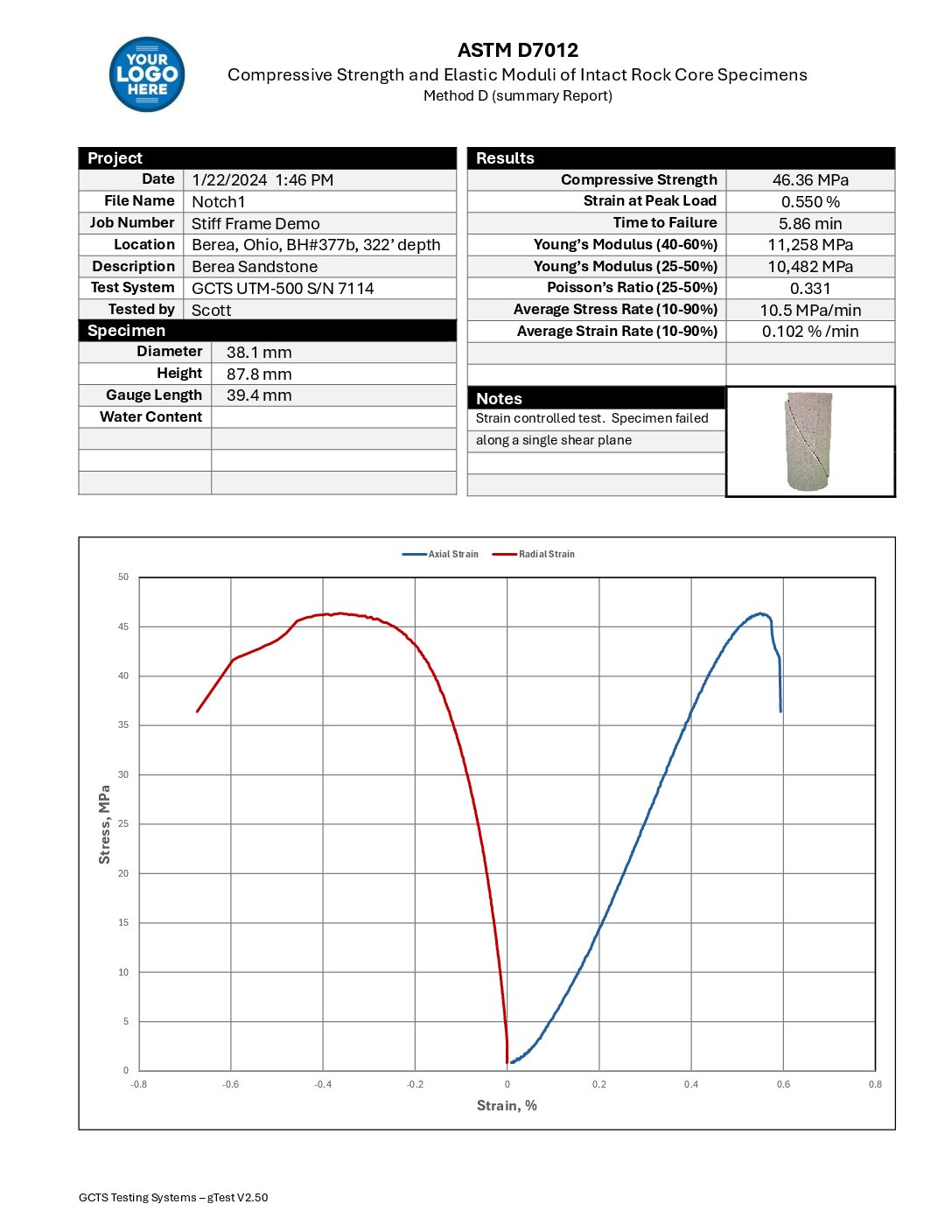

The GCTS UTM‐500 is a servo‐hydraulic load frame with exceptional control and accuracy designed for precise testing. Four‐column vertical standing assembly and threaded columns for cross head adjustment. Servo control with closed‐loop feedback from any of the eight (8) input channels or real‐time calculated function. The UTM load frames can accommodate a large range of test fixtures. GCTS offers a vast library of apps for specific test standards or customized procedures to meet your unique testing needs. The UTM‐500 is a servo‐controlled all‐in‐one system for performing a variety of material characterization tests on rock specimens. The 500 kN capacity load frame is ideal for performing unconfined compression tests while utilizing on‐specimen strain measurement devices. The UTM‐500 can also be fit with accessories to perform indirect tension (Brazilian) tests, ultrasonic velocity measurements, or acoustic emission sensors.
UTM-500
The GCTS UTM-500 Universal Testing Machine is a versatile, servo-controlled system engineered for precise material characterization of rock specimens in modern laboratories. With a robust 500 kN capacity load frame, it serves as an all-in-one solution capable of performing a wide range of tests, including unconfined compression, indirect tension (Brazilian), ultrasonic velocity measurements, and acoustic emission monitoring. Its closed-loop servo control and high-resolution data acquisition ensure exceptional accuracy and repeatability across various testing applications.
Features:
- 500 kN compression load capacity with 100 kN tension capability
- Closed-loop servo control with 2-inch (50.8 mm) cylinder stroke
- Four-column vertical standing assembly with generous daylight opening and clear column dimensions
- Integrated hydraulic power unit with precise pressure control
- Standard 8-inch diameter load plate
- Robust construction suitable for laboratory environments
Specifications:
- Power Specifications
- Voltage: 208-230 V
- Full Load Amps: 13.8 A
- Frequency: 50/60 Hz
- Load Frame Specifications
- Compression Load Limit: 500 kN
- Tension Load Limit: 100 kN
- Cylinder Stroke: 2 in
- Daylight Opening: 21.938 in
- Column Width Clear: 9.5 in
- Column Depth Clear: 5.438 in
- Load Plate Diameter (Standard): 8 in
- Hydraulic Pump Specifications
- Horsepower: 2 HP
- Voltage: 208-230 V
- Full Load Amps: 10.8 A
- Frequency: 50/60 Hz
- Flow: 0.5 GPM
Weight
- Weight Assembly: 872 lbs.
Requirements:
- Electrical power supply of 208-230 V, 50/60 Hz (load frame: 13.8 A; hydraulic pump: 10.8 A)
- Suitable laboratory environment with adequate floor space and load-bearing capacity to accommodate the 872 lbs assembly weight
- Standard hydraulic oil (per manufacturer recommendations for maintenance)
