LVDT Calibration

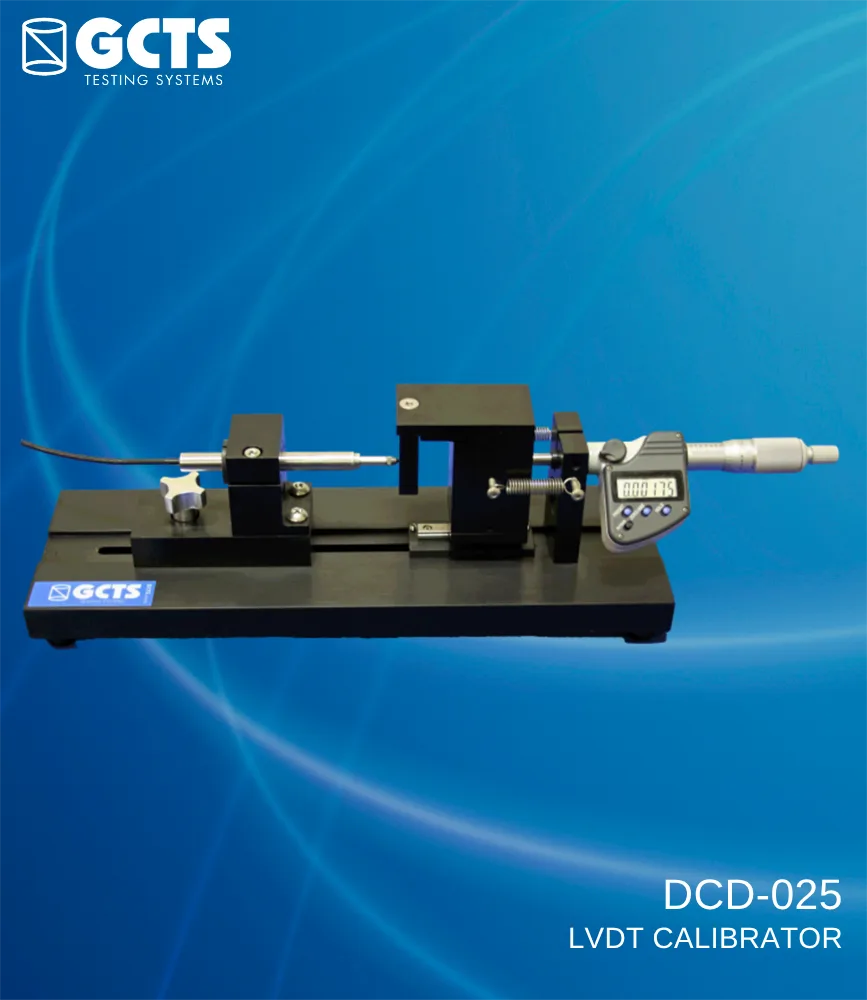

The GCTS LVDT Calibration Device provides a very simple and easy to use technique to accurately calibrate a wide variety of LVDTs.

The readout is available in both SI and English units. The device has an adjustable mounting bracket that can accommodate LVDTs of most sizes.


Download the DCD-025 PDF Brochure


  • Easy to use, no special tools required
  • Digital display readout
  • Spring loaded linear displacement (non-rotational)
  • User-selectable SI or English units
  • 25 mm (1 inch) travel range
  • 0.001 mm (0.000050 inch) resolution
  • Measures absolute or relative displacements
  • Accepts LVDTs with 3/8 in, 3/4 in, and 7/8 in body diameter, with other sizes available upon request
  • Micrometer device certified by manufacturer


  • Weight: 4 kg
  • Dimensions (cm): 50 x 25 x 25

Are you interested in our LVDT Calibration solution? Contact us today!
