Specimen Verification

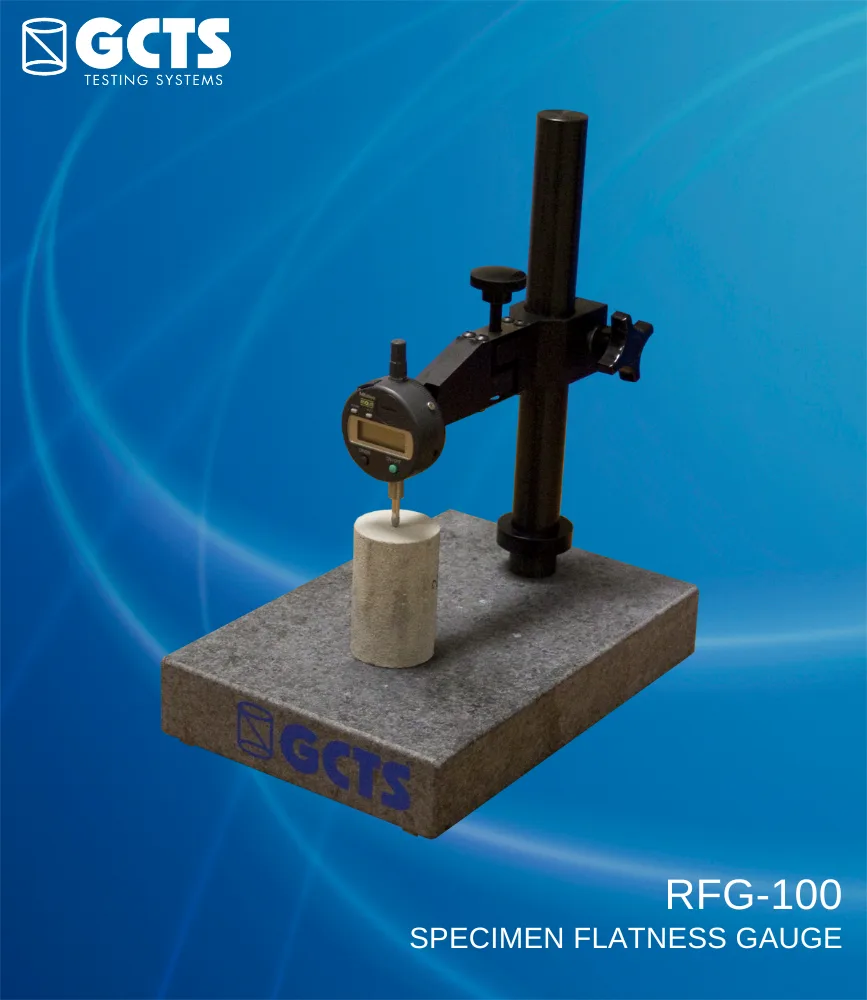

The GCTS RFG-100 Specimen Flatness Gauge is used for the final step of specimen preparation. It is designed to precisely measure the flatness of a specimen for strength testing. GCTS also offers an upgrade to the RCV-100 to meet ASTM D4543 specifications.
GCTS also offers Specimen Core Drills and Specimen End Grinders to fully prepare a cylindrical rock specimen for testing.
RFG-100
HIGHLIGHTS
- 200 mm x 300 mm x 50 mm thick granite base (grade A, ±0.0001″ accuracy)
- Dial gauge support for measuring flatness of specimens up to 200 mm in height
- Includes electronic digital dial gauge with 0.01 mm (0.0005″) resolution
Relevant Standards
ASTM D4543 Standard Practices for Preparing Rock Core as Cylindrical Test Specimens and Verifying Conformance to Dimensional and Shape Tolerances
