Circumferential Velocity

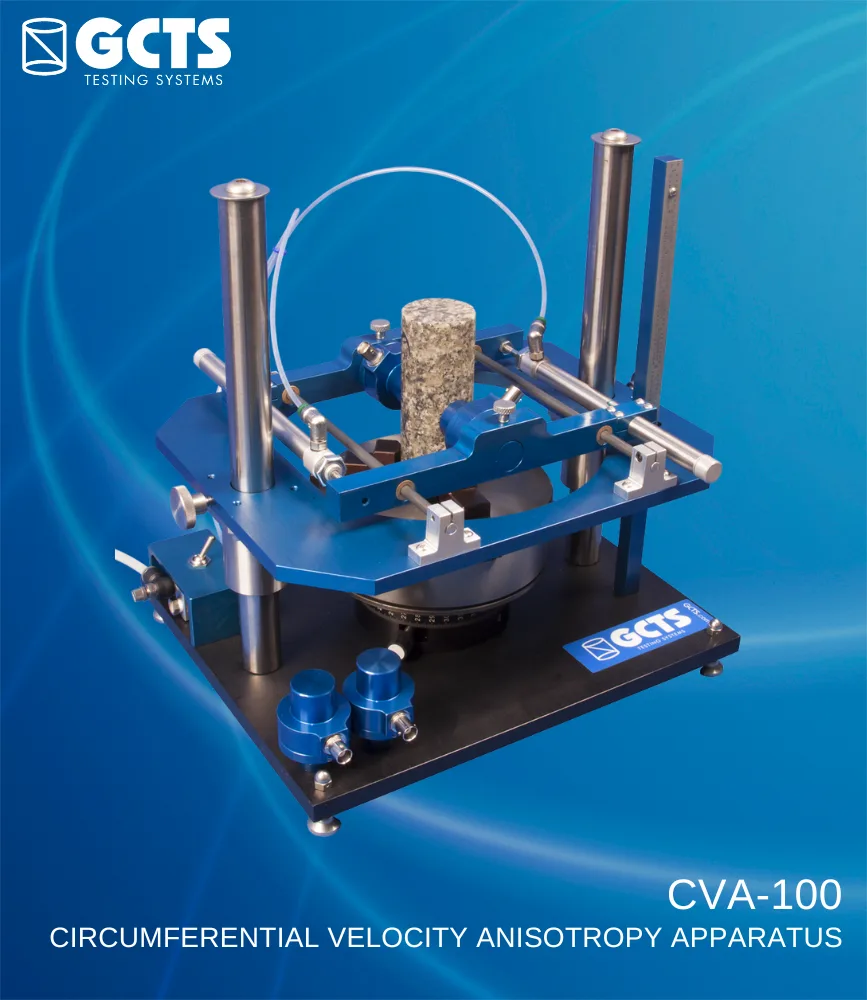

The GCTS CVA-100 Circumferential Velocity Anisotropy Apparatus is used to determine the compression P-wave velocities and shear S-wave velocities in rock core specimens in different orientations. This apparatus, when used with a GCTS ULT-200 or other suitable ultrasonic measurement device, can obtain velocity versus angle and height data with relative ease and precision.
Category: Rock Testing Solutions
CVA-100
Download the CVA-100 PDF Brochure
HIGHLIGHTS
- P-wave and S-wave ultrasonic velocity transducers (source and receiver), which come in standard frequencies of 200 kHz or 1 MHz
- Provides map of P-wave and S-wave velocities vs. orientation angle and height
- High-quality anodized aluminum construction of the base, columns and the supporting jig for the ultrasonic transducers
- Pneumatic actuators with return toggle switch for quick and accurate transducers positioning on the specimen
- Turntable with precise Vernier scale for precise measurement of angular orientation of the specimen
- 100 mm (4 inch) maximum specimen diameter
- 40 cm (H) x 32 cm (W) x 30 cm (L), 20 kg mass
NOTE: Pneumatic actuators require compressed air input.
NOTE: Requires GCTS ULT-200 or other suitable ultrasonic measurement device for operation
